Spanish Navy Mine-laying Boat

Spanish Navy Mine-laying Boat also Transported Torpedoes

Spanish name “Barcaza para Embarque y Fondeo de Minas y Transporte de Torpedoes”

Translates to “Barge for Shipment and Anchoring of Mines and Transport of Torpedoes”

This 1950s Spanish naval vessel was used to transport mines and torpedoes, and also worked as a mine-layer. The smaller size of this boat would make it suitable for a larger scale ship model. The hard-chine hull would make scratch-building a model easier as well

free ship plans Spanish mine torpedo transport

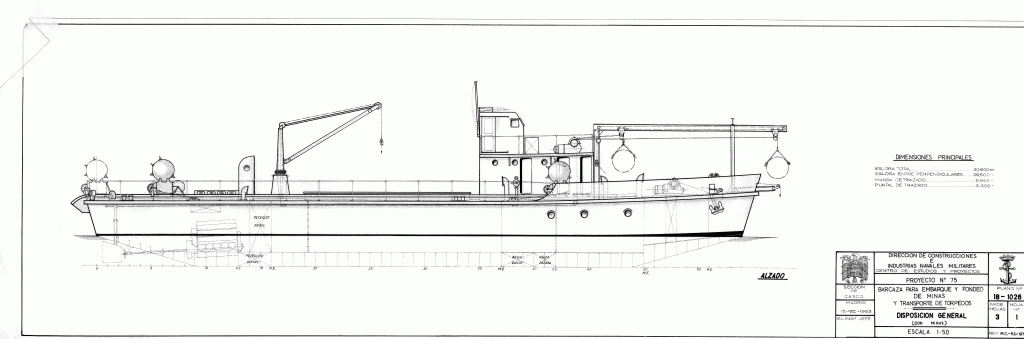

Spanish mine and torpedo transport showing cargo of mines.
free ship plans, Spanish, mine-layer

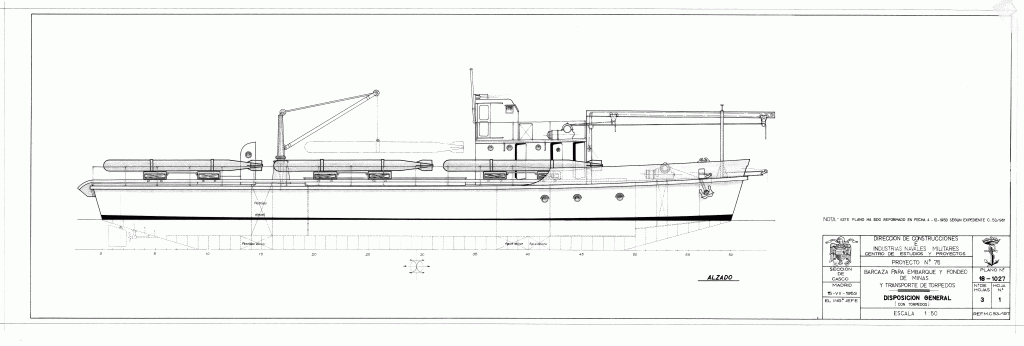

Spanish mine boat showing cargo of torpedoes
free ship plan, Spanish mine-layer, navy boat, torpedo

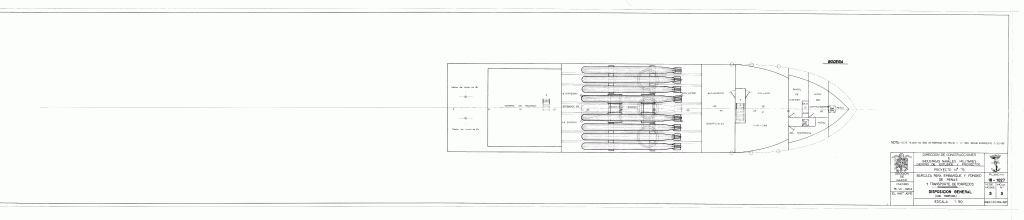

Spanish mine-layer deck plan showing cargo of torpedoes
free ship plan, Spanish navy, mine-layer, torpedo

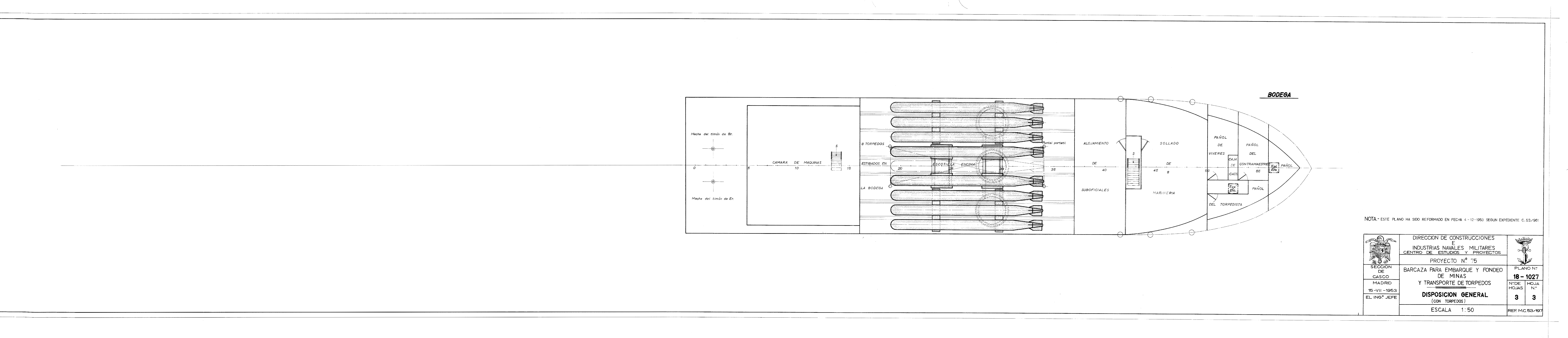

Spanish Navy mine-layer deck plan showing torpedo cargo
free ship plan, Spain, navy, minelayer

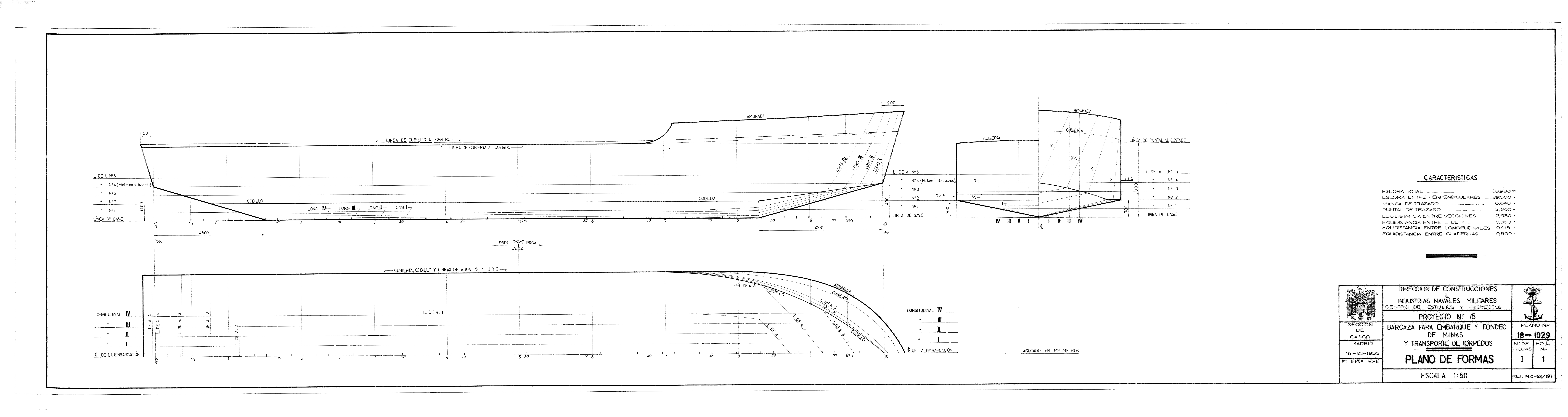

Ships lines plan, Spanish Navy mine-layer
